Re: Color to Black & White
Cyril, thanks for the great explanation. I knew most of it but wasn't aware of the averaging methods. Very helpful. It's also clear you've been a good teacher. I had a high school teacher once who droned through his prepared lecture for an hour and never looked up once all semester. I never remembered anything he said.
Jacqueline Landman Gay | jacque at hyperactivesw dot com
HyperActive Software | http://www.hyperactivesw.com
HyperActive Software | http://www.hyperactivesw.com
-
- VIP Livecode Opensource Backer
- Posts: 327
- Joined: Sun Apr 15, 2012 1:17 am
- Location: USA
- Contact:
Re: Color to Black & White
You are welcome and thanks to you for all I have learned from your posts on this forum. It is a very good resource for learning about LiveCode and more.
We all had teachers like you described.
Its interesting. When I taught at a prestigious university, the discussion often came up as to our role there. Many of us were committed to our teaching and reaching as many students as possible. Others felt their role was to graduate only the top students in order to maintain the high reputation of the institution.
It is simpler at the high school level. Some teachers want to graduate as many students as possible, others want to maintain their standards (reputation?) and there are those who do not necessarily care, they show up every day. Luckily most of them care and do try to do their best.
Like it or not, doesn't it prepare us for real life?
We all had teachers like you described.
Its interesting. When I taught at a prestigious university, the discussion often came up as to our role there. Many of us were committed to our teaching and reaching as many students as possible. Others felt their role was to graduate only the top students in order to maintain the high reputation of the institution.
It is simpler at the high school level. Some teachers want to graduate as many students as possible, others want to maintain their standards (reputation?) and there are those who do not necessarily care, they show up every day. Luckily most of them care and do try to do their best.
Like it or not, doesn't it prepare us for real life?
Cyril Pruszko
https://sites.google.com/a/pgcps.org/livecode/
https://sites.google.com/a/setonhs.org/app-and-game-workshop/home
https://learntolivecode.com/
https://sites.google.com/a/pgcps.org/livecode/
https://sites.google.com/a/setonhs.org/app-and-game-workshop/home
https://learntolivecode.com/
-
- VIP Livecode Opensource Backer
- Posts: 4028
- Joined: Sun Jan 07, 2007 9:12 pm
- Location: Bochum, Germany
Re: Color to Black & White
Cyril's explanations are very helpful in understanding what the conversion from RGB to B/W needs.
Here is a short snippet that lets you do it in Livecode without having to touch every pixel.
Make a stack with two images. The first is your color image the second will be your B/W image.
A button with this script.
It sure beats accessing every pixel and translate it to greyscale.
Kind regards
Bernd
Here is a short snippet that lets you do it in Livecode without having to touch every pixel.
Make a stack with two images. The first is your color image the second will be your B/W image.
A button with this script.
Code: Select all
on mouseUp
repeat with i = 0 to 255
put i & comma & i & comma & i & return after tColorList
end repeat
delete char -1 of tColorList
export image "Original" to image "fff" as png with palette tColorList
end mouseUp
Kind regards
Bernd
-
- VIP Livecode Opensource Backer
- Posts: 9756
- Joined: Wed May 06, 2009 2:28 pm
- Location: New York, NY
Re: Color to Black & White
Bernd.
Nice way to assemble
Nice way to assemble
"1,1,1"
"2,2,2"
"3,3,3"
...
-
- VIP Livecode Opensource Backer
- Posts: 327
- Joined: Sun Apr 15, 2012 1:17 am
- Location: USA
- Contact:
Re: Color to Black & White
Bern,
It may be faster but not better. Compare the results and you will see the difference.
I have a stack to demonstrate but it is too large to load. LiveCode really generates large files. My test program with only 30 lines of code total on 3 buttons ended up 5MB. Even the zip file is too large to include as an attachment (1.5MB)
You lose a lot of brightness and detail using the Palette method.
Thanks,
It may be faster but not better. Compare the results and you will see the difference.
I have a stack to demonstrate but it is too large to load. LiveCode really generates large files. My test program with only 30 lines of code total on 3 buttons ended up 5MB. Even the zip file is too large to include as an attachment (1.5MB)
You lose a lot of brightness and detail using the Palette method.
Thanks,
Cyril Pruszko
https://sites.google.com/a/pgcps.org/livecode/
https://sites.google.com/a/setonhs.org/app-and-game-workshop/home
https://learntolivecode.com/
https://sites.google.com/a/pgcps.org/livecode/
https://sites.google.com/a/setonhs.org/app-and-game-workshop/home
https://learntolivecode.com/
-
- VIP Livecode Opensource Backer
- Posts: 4028
- Joined: Sun Jan 07, 2007 9:12 pm
- Location: Bochum, Germany
Re: Color to Black & White
Cyril,
Thanks for testing.
I repeated my tests using an image with more dynamic light/dark ranges and I agree that your method produces better black/white dynamic than the palette method.
Before I tested with an image that had a lower dynamic range and could not see a difference.
Kind regards
Bernd
Thanks for testing.
I repeated my tests using an image with more dynamic light/dark ranges and I agree that your method produces better black/white dynamic than the palette method.
Before I tested with an image that had a lower dynamic range and could not see a difference.
Kind regards
Bernd
Re: Color to Black & White
There is also TinyColor for LiveCode by Ferruslogic.
https://github.com/Ferruslogic/TinyColo ... ag/v1.0.0b
https://github.com/Ferruslogic/TinyColo ... ag/v1.0.0b
Jim LambertPost by andresdt » Fri Jan 21, 2022 5:08 pm
TinyColor is a popular JavaScript library. With a 4.1k star rating on GitHub. https://github.com/bgrins/TinyColor
We now have a version of this popular library for LiveCode. Written 100% in LiveCodeScript.
-
- VIP Livecode Opensource Backer
- Posts: 4028
- Joined: Sun Jan 07, 2007 9:12 pm
- Location: Bochum, Germany
Re: Color to Black & White
Cyril,Newbie4 wrote: ↑Mon Dec 04, 2023 5:37 amCode: Select all
repeat with tPixel = 0 to (origHeight * origWidth ) - 1 put tPixel * 4 into pixelStart // get the color values put charToNum (char (pixelStart + 2) of image1) into tRed put charToNum (char (pixelStart + 3) of image1) into tGreen put charToNum (char (pixelStart + 4) of image1) into tBlue put ( (tRed + tGreen + tBlue) / 3 ) into tAvg put numToChar (tAvg ) into char (pixelStart + 2) of image1 // Red put numToChar (tAvg) into char (pixelStart + 3) of image1 // Green put numToChar (tAvg) into char (pixelStart + 4) of image1 // Blue end repeat;
please note that numToChar, charToNum, and "char" in this context has been deprecated.
We are advised to use numToByte, byteToNum, and byte in this context. This was introduced with the advent of unicode.
Your code adapted to the current recommendation:
Code: Select all
repeat with tPixel = 0 to (origHeight * origWidth ) - 1
put tPixel * 4 into pixelStart
// get the color values
put byteToNum (byte (pixelStart + 2) of image1) into tRed
put byteToNum (byte (pixelStart + 3) of image1) into tGreen
put byteToNum (byte (pixelStart + 4) of image1) into tBlue
put ( (tRed + tGreen + tBlue) / 3 ) into tAvg
put numToByte (tAvg ) into byte (pixelStart + 2) of image1 // Red
put numToByte (tAvg) into byte (pixelStart + 3) of image1 // Green
put numToByte (tAvg) into byte (pixelStart + 4) of image1 // Blue
end repeat
Kind regards
Bernd
Re: Color to Black & White
hasn't numToChar been replaced with numToCodepoint and charToNum been replaced with codepointToNum? (I believe this change was brought in for unicode?)
Obviously if working with actual bytes neither of these should be used...
-
- VIP Livecode Opensource Backer
- Posts: 4028
- Joined: Sun Jan 07, 2007 9:12 pm
- Location: Bochum, Germany
Re: Color to Black & White
In the context of images one operates on actual bytes and hence numToByte, byteToNum, and byte which are in the range of 0 to 255.
codepoint is used for unicode text and goes up to 0x10FFFF = decimal 1114111 (I looked that up...)
Kind regards
Bernd
-
- VIP Livecode Opensource Backer
- Posts: 327
- Joined: Sun Apr 15, 2012 1:17 am
- Location: USA
- Contact:
Re: Color to Black & White
Thanks Bernd, that is good to know.
LiveCode has gotten too complicated and harder. There is not enough documentation and examples. What documentation that is out there is slowly becoming incorrect and obsolete.
This forum is one of the few places to get help and I have noticed the decrease of activity over the years. I think they are putting all of their eggs in the wrong basket.
Anyway, this topic would make the start of a good chapter on manipulating images.
LiveCode has gotten too complicated and harder. There is not enough documentation and examples. What documentation that is out there is slowly becoming incorrect and obsolete.
This forum is one of the few places to get help and I have noticed the decrease of activity over the years. I think they are putting all of their eggs in the wrong basket.
Anyway, this topic would make the start of a good chapter on manipulating images.
Cyril Pruszko
https://sites.google.com/a/pgcps.org/livecode/
https://sites.google.com/a/setonhs.org/app-and-game-workshop/home
https://learntolivecode.com/
https://sites.google.com/a/pgcps.org/livecode/
https://sites.google.com/a/setonhs.org/app-and-game-workshop/home
https://learntolivecode.com/
Re: Color to Black & White

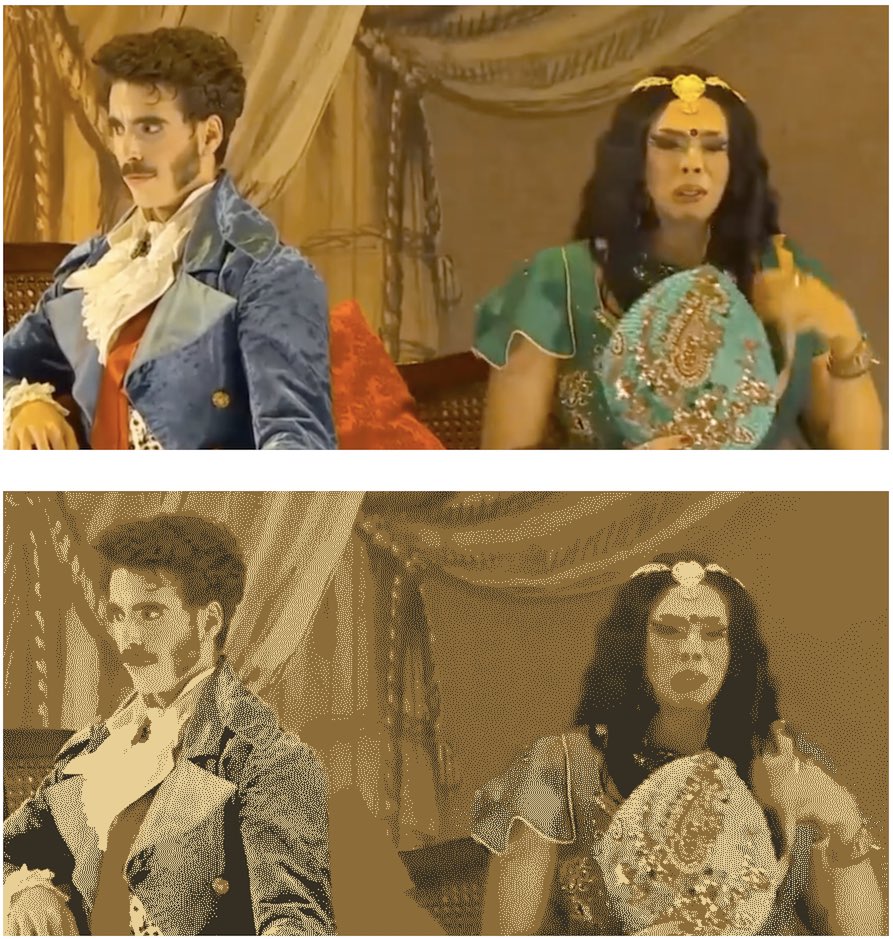

As Bernd noted export with palette is very quick.
And you can do wacky color palettes.
Jim Lambert
And you can do wacky color palettes.
Jim Lambert
-
- VIP Livecode Opensource Backer
- Posts: 4028
- Joined: Sun Jan 07, 2007 9:12 pm
- Location: Bochum, Germany
Re: Color to Black & White
Jim,
thanks for posting this stack. While the greyscale is faster using "palette" it is also not as nice as doing the math on the pixels.
Make a new button on your stack and set the script of it to
if you hold down the option key it uses the sum of RGB values diveded by 3, without the option key down it uses an adjusted factor for RGB values.
-- 0.299*R + 0.587*G + 0.114*B
Especially in the yellow and green colors of the flowers you will notice the difference.
Kind regards
Bernd
thanks for posting this stack. While the greyscale is faster using "palette" it is also not as nice as doing the math on the pixels.
Make a new button on your stack and set the script of it to
Code: Select all
on mouseUp
put the milliseconds into t1
put 1 into tImgName
put 2 into tImgName2
put the height of image tImgName into origHeight
put the width of image tImgName into origWidth
put the imageData of image tImgName into tImgData
put numToByte(0) into tNullByte -- for alphavalue which is not used but needed
repeat with tPixel = 0 to (origHeight * origWidth ) - 1
put tPixel * 4 into pixelStart
// get the color values
put byteToNum (byte (pixelStart + 2) of tImgData) into tRed
put byteToNum (byte (pixelStart + 3) of tImgData) into tGreen
put byteToNum (byte (pixelStart + 4) of tImgData) into tBlue
if the optionKey is down then
put trunc((tRed + tGreen + tBlue) / 3 ) into tAvg -- unadjusted average
else
put trunc(0.299*tRed + 0.587*tGreen + 0.114*tBlue) into tAvg -- adjusted average
end if
put tNullByte into byte(pixelStart + 1) of tImgData2
put numToByte(tAvg) into byte (pixelStart + 2) of tImgData2
put numToByte(tAvg) into byte (pixelStart + 3) of tImgData2
put numToByte(tAvg) into byte (pixelStart + 4) of tImgData2
end repeat
set the width of image tImgName2 to origWidth
set the height of image tImgName2 to origHeight
set the imageData of image tImgName2 to tImgData2
put the milliseconds - t1 && "milliseconds"
end mouseUp
-- 0.299*R + 0.587*G + 0.114*B
Especially in the yellow and green colors of the flowers you will notice the difference.
Kind regards
Bernd
-
- VIP Livecode Opensource Backer
- Posts: 327
- Joined: Sun Apr 15, 2012 1:17 am
- Location: USA
- Contact:
Re: Color to Black & White
Yes, good Jim. Thanks for the nice example
Thanks Bernd for the post. (You beat me to it)
I was going to suggest adding a 3rd image (image 3) and a button with the following code:
With the extra image field, you can see the difference in a side-by-side comparison. I took the size calculation out of the Repeat loop.
I like your use of the option key to see the difference weighting makes. Thanks
What is surprising is that adding this code bumped up the size of the stack from 104 K to 2.4 MB. That is a lot of LiveCode engine code to support that little code.
Thanks Bernd for the post. (You beat me to it)
I was going to suggest adding a 3rd image (image 3) and a button with the following code:
Code: Select all
on mouseUp
put image 1 into image 3
wait 30 ticks
put the imageData of image 1 into tImage
put (the Height of image 3 * the width of image 3)-1 into tSize
repeat with tPixel = 0 to tSize
put tPixel * 4 into pixelStart
// get the color values
put byteToNum (byte (pixelStart + 2) of tImage) into tRed
put byteToNum (byte (pixelStart + 3) of tImage) into tGreen
put byteToNum (byte (pixelStart + 4) of tImage) into tBlue
// average and replace
put ( (tRed + tGreen + tBlue) / 3 ) into tAvg
put numToByte (tAvg) into byte (pixelStart + 2) of tImage // Red
put numToByte (tAvg) into byte (pixelStart + 3) of tImage // Green
put numToByte (tAvg) into byte (pixelStart + 4) of tImage // Blue
end repeat
set the imageData of image 3 to tImage
end mouseUp
I like your use of the option key to see the difference weighting makes. Thanks
What is surprising is that adding this code bumped up the size of the stack from 104 K to 2.4 MB. That is a lot of LiveCode engine code to support that little code.
Cyril Pruszko
https://sites.google.com/a/pgcps.org/livecode/
https://sites.google.com/a/setonhs.org/app-and-game-workshop/home
https://learntolivecode.com/
https://sites.google.com/a/pgcps.org/livecode/
https://sites.google.com/a/setonhs.org/app-and-game-workshop/home
https://learntolivecode.com/
-
- Livecode Opensource Backer
- Posts: 9461
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Color to Black & White
What not many people hereabouts may have noticed in their attempts to outdo each other and scramble for their spot in the sunlight is that the original point about a palette of a very few colours produces interesting graphic effects that other people are paying for by buying fancy filters for Photoshop:
-
-
