A cactus in the backside

[richmond62]

-

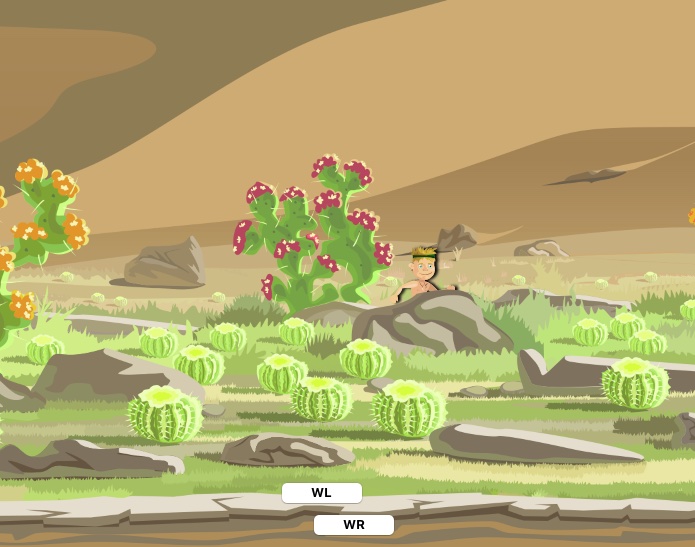

So, I have a "silly little animation"

(images thanks to the good folks at https://craftpix.net/

Download link removed as improved version available further down.

with 2 buttons called "WL" and "WR" respectively to animate my 'boy' across the screen
with this sort of code:

Code: Select all

on mouseUp
   put item 1 of the loc of grc "ramka" into LR
   put item 2 of the loc of grc "ramka" into UD
   repeat until LR < (- 50)
      put 1 into WALKL
      repeat until WALKL > 6
         set the width of grc "ramka" to the width of img ("L" & WALKL & ".png")
         set the height of grc "ramka" to the height of img ("L" & WALKL & ".png")
         set the backGroundPattern of grc "ramka" to the ID of img ("L" & WALKL & ".png")
         add 1 to WALKL
         subtract 10 from LR
         move grc "ramka" to LR, UD
         wait 20 ticks
      end repeat
      subtract 10 from LR
      move grc "ramka" to LR, UD
   end repeat
end mouseUp

AND the blasted thing seems to flash in an extremely annoying way at the end of each inner repeat.

[stam]

AND the blasted thing seems to flash in an extremely annoying way at the end of each inner repeat.

Hi Richmond,
i'm not getting any flashes, but animation is jerky - seems to be a bit smoother if reducing the 'wait' to 10 ticks, but then i don't know much about animating sprites etc. On occasion on opening the stack i get the whole background showing as black.

Would using animationEngine help make this smoother?

Stam

[dunbarx]

How did I Know, just reading the title, that Richmond was behind all this?

Would locking the screen at the beginning of the repeat loop and unlocking at its end help?

Craig

[richmond62]

Would locking the screen at the beginning of the repeat loop and unlocking at its end help?

Brilliant: no one would see the animation: but then they wouldn't see any flickers either.

Would using animationEngine help make this smoother?

Probably after I have told all my summer kids to shell out the money for it.

How did I Know, just reading the title, that Richmond was behind all this?

A really simple way to separate those who 'do' from those who 'don't' without those who 'don't' opening the post
in the first place.

[richmond62]

The "main problem" is that there are effectively 2 types of animation going on:

1. The sequence of images used as backGroundPatterns for a round rectangle graphic.

2. The movement of the round rectangle graphic across the stack.

I always have a feeling that a programming language should be capable of doing everything without add-ons.

[dunbarx]

Richmond.

I did say to unlock the screen each iteration, you know.

Craig

[richmond62]

I apologise:

Code: Select all

on mouseUp
   put item 1 of the loc of grc "ramka" into LR
   put item 2 of the loc of grc "ramka" into UD
   repeat until LR < (- 50)
      put 1 into WALKL
      repeat until WALKL > 6
         set the lockScreen to true  -- dunbar
         set the width of grc "ramka" to the width of img ("L" & WALKL & ".png")
         set the height of grc "ramka" to the height of img ("L" & WALKL & ".png")
         set the backGroundPattern of grc "ramka" to the ID of img ("L" & WALKL & ".png")
         add 1 to WALKL
         subtract 10 from LR
         move grc "ramka" to LR, UD
         wait 20 ticks
         set the lockScreen to false  -- dunbar
      end repeat
      subtract 10 from LR
      move grc "ramka" to LR, UD
   end repeat
end mouseUp

results in no flashing at all.

Can you explain why?

As you have pointed out, the animation is jerky: but by reducing the size of the lateral movement of the graphic
and the wait period that can be overcome.

Improved version here: https://www.dropbox.com/s/kbpa0dhcc1mvw ... e.zip?dl=0

[richmond62]

animationEngine

With all respects to Malte Brill I have never had the chance to look at his work.

While it is dual-licensed: viewtopic.php?t=22361
I am using animation to teach children LiveCode and want to keep things 'pure'.

But I have been animating stuff like the way demonstrated above for about 7 years and
have never encountered that flashing before.

I wondered if it was an optical effect caused by:

1. My ageing eyes.

2. Too much beer at lunchtime.

3. Forgot to chant my morning mantras [err . . . strike that one].

But having had a pair of 10 year olds look at things they also saw some flashing going on.

[mwieder]

[NOTE:] I typed this in before your latest, but here it is anyway.

I don't see screen flashing here. But the movement is indeed pretty jerky due to a couple of things.
First of all, as Craig suggested, locking and unlocking the screen inside the inner repeat loop allows the graphic mangling to take place out of camera range. Secondly, as Stam suggested, the wait statement seems unnecessarily long. Cutting down the wait time helps with this, but I get the best effect by removing the wait completely.

Here's a fairly smooth animation effect without flashing or jerkiness.

Code: Select all

on mouseUp
   local LR, UD, WALKL
   put item 1 of the loc of grc "ramka" into LR
   put item 2 of the loc of grc "ramka" into UD
   repeat until LR < (- 50)
      put 1 into WALKL
      repeat until WALKL > 6
         lock screen # do this out of sight
         set the width of grc "ramka" to the width of img ("L" & WALKL & ".png")
         set the height of grc "ramka" to the height of img ("L" & WALKL & ".png")
         set the backGroundPattern of grc "ramka" to the ID of img ("L" & WALKL & ".png")
         add 1 to WALKL
         subtract 10 from LR
         move grc "ramka" to LR, UD
         unlock screen # now show what's been done
         --wait 20 ticks # no
      end repeat
      subtract 10 from LR
      move grc "ramka" to LR, UD
   end repeat
end mouseUp

[jacque]

If speed control is desired, why not use:

Code: Select all

move grc "ramka" to LR, UD in 10 ticks without waiting

I confess I didn't actually test this.
EDIT: I did just test this and it doesn't work. So there's that.

[SparkOut]

It appears you already have answers to address some of these issues.
One thing I found in animation a few versions ago (not really done anything of the ilk in recent times) which therefore may not be worth mentioning: when moving an object (button/sprite/icon/whatever) the rendering of the "leading edge" seemed to be problematic, with the "original" edge being the "mask" but the "after movement" position being the "trailing edge" so it looks like the front of the object is cut off.
This was remedied by having a little buffer area of transparency around the object, so that only the transparent part gets cut off znd hence not noticeable. It might be a bit relevant, or not.

[richmond62]

a little buffer area of transparency around the object

Is that round the images in the sequences used as backGroundPatterns in the graphic or
re the borders of the graphic compared with those images?

The problem is that if one expands the size of the graphic one gets the images repeating (tiling).
-

-
I suppose one could go back and expand the transparent area round each image
(although, when I think about that, I suddenly remember that I have to go and have a bath
so I don't smell like a rank raccoon tomorrow in class - 36 degrees Celsius with 75% humidity
here today) in the sequence.

[SparkOut]

I suppose one could go back and expand the transparent area round each image

Yes, this - but the target area would be sized to match. No tiling necessary. Bath, probably.

[stam]

More for my own interest and as a diversion i played a bit with this - i dislike things running in loops as they can lock the interface.
For example it can be hard to change directions or pause.
An alternative is to recursively call an animation/movement with 'send to me in xx ticks' which doesn't block the interface. By and large i got this to work just fine but very weirdly the sprite slowly wanders upwards in the screen! Not sure why... even if i try to fix it to a line, it still wonders up...

this is the code in the card script:

Code: Select all

global gStop
local sPhase, sLoc, sDirection

command marchSprite pDirection
    local tDir, tStep, tRect, temp
    put pDirection into sDirection

    if sDirection = "left" then //images named L1-6 and R1-6
        put "L" into tDir
    else
        put "R" into tDir
    end if
    //sPhase 1->6
    add 1 to sPhase
    if sPhase > 6 then put 1 into sPhase
    lock screen
    set the height of graphic "animationRect" to the height of image (tDir & sPhase & ".png")
    set the width of graphic "animationRect" to the width of image (tDir & sPhase & ".png")
    set the backgroundPattern of graphic "animationRect" to the id of img (tDir & sPhase & ".png")
    unlock screen
    if not gStop then
        put the rect of graphic "animationRect" into tRect
        if sDirection = "left" then
            if  the left of  graphic "animationRect" > 20 then
                lock screen
                add (-1 * field "step") to item 1 of tRect
                add (-1 * field "step") to item 3 of tRect
                set the rect of graphic "animationRect" of me to tRect
                set the botton of graphic "animationRect" of me to the top of graphic "line" //attempt to stop hovering upwards!
                unlock screen
            else
                exit to top
            end if
        else
            put item 3 of the rect of this stack - the width of graphic "animationRect" * 3 into temp
            if item 3 of  tRect  <= temp then
                lock screen
                add (field "step") to item 1 of tRect
                add (field "step") to item 3 of tRect
                set the rect of graphic "animationRect" of me to tRect
                set the botton of graphic "animationRect" of me to the top of graphic "line"//attempt to stop hovering upwards!
                unlock screen
            else
                exit to top
            end if
        end if
    else
        exit to top
    end if
    send "marchSprite pDirection" to me in field "ticks" ticks
end marchSprite

on escapeKey
    put true into gStop //makes animation stop
    exit to top
end escapeKey

Any idea why it the sprite wanders up the screen?

[bn]

Hi Stam,

I think the upward movement stems from the images being 100 and 101 in height so the loc of graphic "animationrect" changes.

The correction does not work because of a typo: botton instead of bottom

Code: Select all

set the botton of graphic "animationRect" of me

When fixing the typo the animation stays on the horizontal line

Kind regards
Bernd
