Jerky Animated Graphics

[richmond62]

I have been messing around with what are, frankly, extremely simplistic, experiments in animating
polygon graphics.

However, as I change the vertices of a graphic the thing won't stay still but keeps moving its centre, so I have
to keep reseting its left side. As a result while the animation is running the whole thing looks like
a horrible, jerky film from about 1880, which, while charming in its own way is not what I am
aiming at: a smooth, flowing animation.

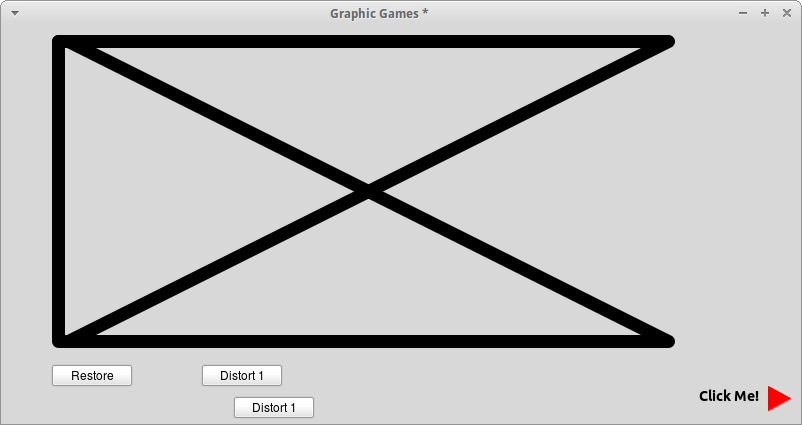

Graphic Games1.png (10.62 KiB) Viewed 5311 times

I would be most grateful for any ideas on how to achieve that smoothness of motion.

[[-hh]]

Code: Select all

on mouseUp
  setPoints 2
end mouseUp

on setPoints STRETCH
  lock screen; lock messages
  put fld "VERTS" into fld "VERTS2"
  put fld "VERTS" into fld "VERTS3"
  add 2 to STRETCH; if STRETCH > 300 then exit setPoints
  put (360 + STRETCH),310 into line 3 of fld "VERTS2"
  put (360 - STRETCH),10 into line 4 of fld "VERTS2"
  ----
  put (360 - STRETCH),310 into line 3 of fld "VERTS3"
  put (360 + STRETCH),10 into line 2 of fld "VERTS3"
  put (360 + STRETCH),10 into line 4 of fld "VERTS3"
  set points of graphic "GG" to fld "VERTS2"
  set points of graphic "GG2" to fld "VERTS3"
  send "setPoints STRETCH" to me in 1 tick
  unlock screen; unlock messages
end setPoints

I also would do that with variables, avoiding field reading/writing (and use one single polygon with 8 points).

Hermann

[Edit. Sorry, 8 points not 6 points. What I meant is the following.]

Code: Select all

local pts, dx

on mouseUp
  put 2 into dx
  put (50,10)&cr&(50,310)&cr&(360,310)&cr&(360,10) &cr&cr& \
        (50,10)&cr&(360,10)&cr&(360,310)&cr&(50,310) into pts
  setPoints 0
end mouseUp

on setPoints cntr
  add 1 to cntr
  if cntr > 310 div dx then exit setPoints
  lock screen; lock messages
  add  dx to item 1 of line 3 of pts
  add -dx to item 1 of line 4 of pts
  add  dx to item 1 of line 7 of pts
  add -dx to item 1 of line 8 of pts
  set points of graphic "GG" to pts
  -- this is now so fast than you can go up here to 3 ticks
  -- or use a slider for speed and/or dx, could be fun for kids?
  send "setPoints cntr" to me in 1 ticks
  unlock screen; unlock messages
end setPoints

[Simon]

Sorry

Just too easy


Simon

[richmond62]

That was going pastrami so fast I almost missed it!
