Importing an SVG with the new Widget

[richmond62]

Well, as not all of us have Adobe Illustrator [ http://lessons.livecode.com/m/33498/l/3 ... -extension ]

I thought I would put together a similar "Show-Me" thing using Inkscape [ https://inkscape.org/en/ ]:

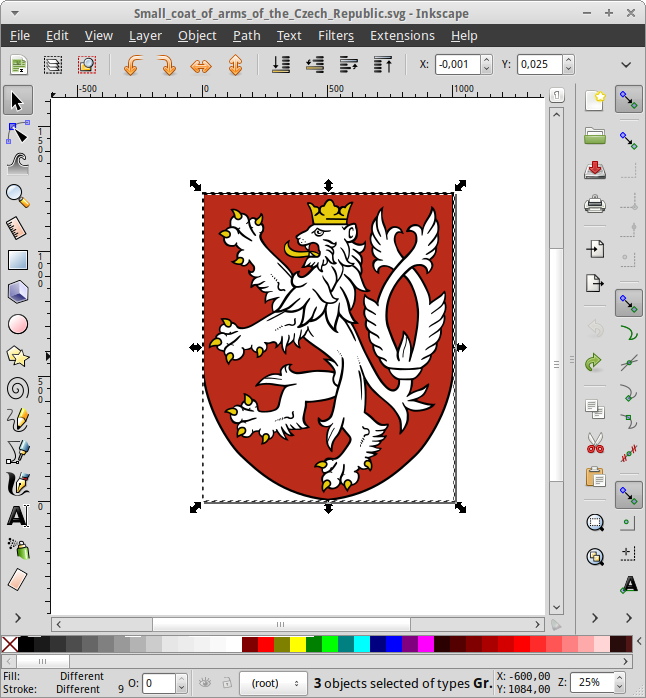

Open or create your shape in Inkscape:

Select ALL the layers:

Make sure it is a compound path:

[richmond62]

Save under a different name:

Notice how the image has changed.

Open the new image in a text editor:

Get the d="..." data

[richmond62]

Paste into iconPath field:

Here's a ZIP file with the resultant stack and the original SVG file so you can play around
with this yourself:

Packet.zip

(49.83 KiB) Downloaded 348 times

[richmond62]

Unfortunately the imported image is not exactly the same as the original SVG image,
and until that happens SVG import is a fudge.
