Create a path out of arcs and lines that can be filled

[trevordevore]

I'm trying to make a shape for a widget that will be used with 'popup widget'. The shape is essentially a rounded rect with a triangle in the top right corner. I need to stroke this path and fill this path.

If I was just going to fill the path then creating a round rect path, a triangle path, and then joining them using 'add tPath2 to tPath' would do the trick. The problem is that if you stroke this path then the entire round rect is stroked. I want the stroke to follow the the outer edge, including the triangle.

I've tried creating the shape by hand using 'line to' and 'put arc path centered at ...'. I am able to create the shape and it looks right when I stroke it. If I try to fill it, however, then you can tell that the path I created isn't one complete path.

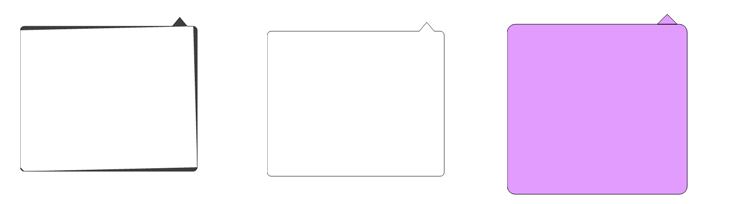

While I could combine the two techniques and end up with what I need, I would be interested in knowing how to create one path that can be stroked and filled. I've attached screenshots of what I've come up with so far. The first two examples are from the code below. The left is being stroked and filled. The middle is being stroked. The right one is from an attempt to join rounded rect and triangle paths. Any idea as to how I can make this one path that can be filled and stroked?

Code: Select all

widget com.livecode.extensions.screensteps.themedMenu

	use com.livecode.canvas
	use com.livecode.widget
	use com.livecode.engine

	metadata title is "???"
	metadata author is "???"
	metadata version is "1.0.0"

	private variable mMenuWidth       as Number
	private variable mMenu            as List
	private variable mMenuItemHeight  as Number
	private variable mBackgroundColor as Color
	private variable mTopBottomMargin as Number
	private variable mChevronBounds   as Rectangle
	private variable mAnchorSide      as String
	private variable mChevronXOffset  as Number
	private variable mCornerRadius    as Number
	private variable mPath            as Path

	public handler OnCreate()
		put 177 into mMenuWidth
		put ["My Article", "My Other Article", "My Other Other Article", "-", "New Article"] into mMenu
		put 31 into mMenuItemHeight
		put 10 into mTopBottomMargin
		put rectangle [0,0,15,9] into mChevronBounds
		put color [42/255, 42/255, 42/255] into mBackgroundColor
		put "right" into mAnchorSide
		put 10 into mChevronXOffset
		put 8 into mCornerRadius
		put path "" into mPath
	end handler

	public handler OnOpen()
		calculatePositions()
	end handler

	public handler OnPaint()
		set the paint of this canvas to solid paint \
			with color [the red of mBackgroundColor, the green of mBackgroundColor, the blue of mBackgroundColor, 0.9]
		fill mPath on this canvas

		set the paint of this canvas to solid paint with mBackgroundColor
		stroke mPath on this canvas
	end handler

	public handler OnClick()
		if currently popped up then
			close popup -- returning SOMETHING
		end if
	end handler


	private handler calculatePositions()
		variable tElement
		variable tHeight as Number

		put the height of mChevronBounds into tHeight
		add mTopBottomMargin * 2 to tHeight

		repeat for each element tElement in mMenu
			if tElement is "-" then
				add 1 to tHeight
			else
				add mMenuItemHeight to tHeight
			end if
		end repeat

		variable tPath as Path
		variable tPoint as Point

		put path "" into tPath
		put path "" into mPath

		if mAnchorSide is "right" then
			-- Top-left
			put point [mCornerRadius/2, the height of mChevronBounds+mCornerRadius/2] into tPoint

			put arc path centered at tPoint with radius mCornerRadius from 180 to 270 into tPath
			add tPath to mPath

			-- Top
			set the x of tPoint to mMenuWidth-mChevronXOffset-the width of mChevronBounds
			set the y of tPoint to the height of mChevronBounds
			line to tPoint on mPath

			-- Chevron
			add the width of mChevronBounds/2 to the x of tPoint
			put 0 into the y of tPoint
			line to tPoint on mPath

			add the width of mChevronBounds/2 to the x of tPoint
			put the height of mChevronBounds into the y of tPoint
			line to tPoint on mPath

			-- Chevron offset
			variable tDistance as Number

			if mChevronXOffset > mCornerRadius then
				-- the arc will cover just the radius
				set the x of tPoint to mMenuWidth - mCornerRadius/2
				line to tPoint on mPath
			end if

			-- Top-right corner
			set the x of tPoint to mMenuWidth - mCornerRadius/2
			set the y of tPoint to the height of mChevronBounds + mCornerRadius/2
			put arc path centered at tPoint with radius mCornerRadius from 270 to 360 into tPath
			add tPath to mPath

			-- Right side
			put point [mMenuWidth, tHeight - mCornerRadius/2] into tPoint
			line to tPoint on mPath

			-- Bottom-right corner
			set the x of tPoint to mMenuWidth - mCornerRadius/2
			put arc path centered at tPoint with radius mCornerRadius from 0 to 90 into tPath
			add tPath to mPath

			-- Bottom
			put point [mCornerRadius/2, tHeight] into tPoint
			line to tPoint on mPath

			-- Bottom-left
			put point [mCornerRadius/2, tHeight- mCornerRadius/2] into tPoint
			put arc path centered at tPoint with radius mCornerRadius from 90 to 180 into tPath
			add tPath to mPath

			-- Left
			set the x of tPoint to 0
			move to tPoint on mPath

			set the y of tPoint to the height of mChevronBounds+mCornerRadius/2
			line to tPoint on mPath
		else

		end if

	end handler

end widget

[Zryip TheSlug]

@trevordevore

setting the fill rule to "non zero" should have do the trick but in your case I don't understand why applying this rule has no effect.
According to the SVG documentation the rule is applied for shapes drawn from left towards right.

By the way there is a mistake in the documentation. The rule is "non zero" not "non-zero"

In the following example the shape is filled correctly:

Code: Select all

public handler OnPaint()
  variable tPath as Path

  put path "M50,20 l40,40 l-40,40 l-40,-40 l40,-40 M50,40 l20,20 l-20,20 l-20,-20 l20,-20" into tPath

  set the paint of this canvas to solid paint with color [245/255, 10/255,10/255]
  stroke tPath on this canvas
  set the fill rule of this canvas to "non zero"
  set the paint of this canvas to solid paint with color [37/255,90/255,170/255]
  fill tPath on this canvas
end handler

However if we are commenting the line

Code: Select all

set the fill rule of this canvas to "non zero"

we are in a pretty similar behavior than yours.

Maybe a clue.

[LCMark]

The fill-rule only affects filling, not stroking. The non-zero rule uses the direction of the subpaths to determine what is filled - if all your paths go the same way, the union of the areas they cover will be filled; if they go in different directions then whether an area is filled depends on the sum of the directions of the paths passed through to reach it when looking from left to right (take -1 for anti-clockwise, 1 for clockwise, an area is filled if the sum is non-zero). The even-odd rule just looks at the number of paths crossed to reach a particular point - if it is even then the area is not filled, otherwise it is.

If you want to stroke an outline, then your path (paths) must be just that outline with no intersections or joins. i.e. You need to construct a path which starts at one point on the outline and traces all the way round. You can do this using the move to / line to etc. commands. @runrevian finished off two variants of 'arc to' (arc to and arc through) the other week, this has still to be merged in but it is here: https://github.com/runrev/livecode/pull/2103.

Incidentally, what you are seeing when stroking and filling the path, is the 'fill' part is automatically closing the individual subpaths you are creating. This will create an implicit line between the start and end point of the subpath (so that there is an 'interior' to fill), this isn't done for stroking which produces an area to fill by 'thickening' just the path segments you have specified.
