Counter Intuitive

Post by richmond62 » Sat Jun 15, 2019 4:32 pm

So; messing around getting stuff ready for my intro classes that start on Monday

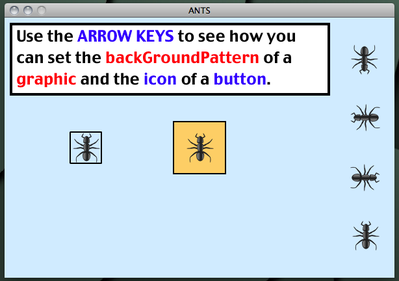

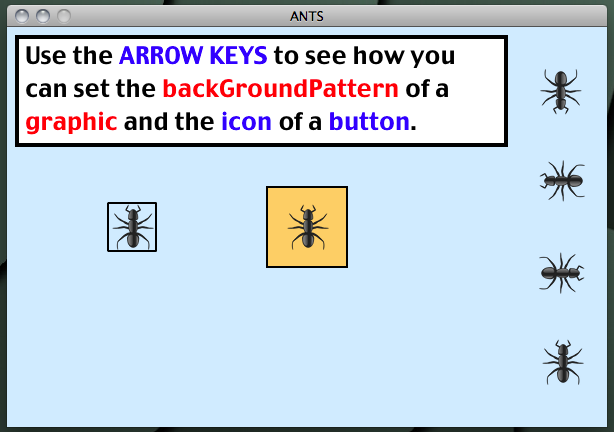

I ran up this stack:
-
-
Which contains this code in the cardScript:

Code: Select all

on arrowKey AK
   switch AK
      case "up"
         set the backGroundPattern of grc "MRAVKA" to the id of img "antUP.png"
         set the icon of btn "KOPCHE" to "antUP.png"
         break
         case "down"
         set the backGroundPattern of grc "MRAVKA" to the id of img "antDN.png"
         set the icon of btn "KOPCHE" to "antDN.png"
         break
         case "left"
         set the backGroundPattern of grc "MRAVKA" to the id of img "antLF.png"
         set the icon of btn "KOPCHE" to "antLF.png"
         break
         case "right"
         set the backGroundPattern of grc "MRAVKA" to the id of img "antRT.png"
         set the icon of btn "KOPCHE" to "antRT.png"
         break
   end switch
end arrowKey
which is "all very charming" until you realise why I spent 10 minutes cursing Marduk . . .

To set the backGroundPattern of a graphic one uses:
to the id of img "WhatDyeCallit.png"

But to set the icon of a button uses: to "WhatDyeCallit.png"

without pointing out that "WhatDyeCallit.png" is an image.
Attachments
ANTS.livecode.zip
Here's the stack
(29.66 KiB) Downloaded 20 times

[-hh]
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 2182
Joined: Thu Feb 28, 2013 11:52 pm
Location: Göttingen, DE

Re: Counter Intuitive

Post by [-hh] » Sat Jun 15, 2019 6:18 pm

You could make it "unique", for example as follows.

Code: Select all

on arrowKey AK
  switch AK
    case "up";    put the id of img "antUP.png" into N; break
    case "down";  put the id of img "antDN.png" into N; break
    case "left";  put the id of img "antLF.png" into N; break
    case "right"; put the id of img "antRT.png" into N; break
  end switch
  set the backGroundPattern of grc "MRAVKA" to N
  set the icon of btn "KOPCHE" to N
end arrowKey
shiftLock happens

richmond62
Livecode Opensource Backer
Livecode Opensource Backer
Posts: 3809
Joined: Fri Feb 19, 2010 10:17 am
Location: Bulgaria

Re: Counter Intuitive

Post by richmond62 » Sun Jun 16, 2019 8:16 am

You could make it "unique"
Indeed, but that completely misses my point. 8)

The fact is that objects should always be referred to by their type and their name,
and when setting the icon of a button that does NOT happen.

This is both inconsistent, and because everywhere else images are referred to as images
counter intuitive.

For those of us at the pointy end of teaching LiveCode this is a bit of a pain in the bum.

jmburnod
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 2400
Joined: Sat Dec 22, 2007 5:35 pm
Location: Genève
Contact:

Re: Counter Intuitive

Post by jmburnod » Sun Jun 16, 2019 11:59 am

Hi Richmond,
This is both inconsistent, and because everywhere else images are referred to as images
counter intuitive.
Yes, but pattern is pattern and icon is icon
Your students can see the difference between them and choose the better control to build what they want.
Best
Jean-Marc

jacque
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 5154
Joined: Sat Apr 08, 2006 8:31 pm
Location: Minneapolis MN
Contact:

Re: Counter Intuitive

Post by jacque » Sun Jun 16, 2019 5:41 pm

They are consistent in that both accept ID numbers. In fact, that's all an icon would accept until the image name was added later as a convenience.

If you want to teach just one thing, use I'Ds only at first.
Jacqueline Landman Gay | jacque at hyperactivesw dot com
HyperActive Software | http://www.hyperactivesw.com

richmond62
Livecode Opensource Backer
Livecode Opensource Backer
Posts: 3809
Joined: Fri Feb 19, 2010 10:17 am
Location: Bulgaria

Re: Counter Intuitive

Post by richmond62 » Sun Jun 16, 2019 7:12 pm

image name was added later as a convenience
That must have been in the Paleolithic.

ID numbers mean that kiddos have to go and look them up . . .

. . . But the "I want it now, or, preferably sooner" generation find that a bit tough. 8)

Klaus
Posts: 11313
Joined: Sat Apr 08, 2006 8:41 am
Location: Germany
Contact:

Re: Counter Intuitive

Post by Klaus » Sun Jun 16, 2019 7:42 pm

richmond62 wrote:
Sun Jun 16, 2019 7:12 pm
ID numbers mean that kiddos have to go and look them up . . .
Then use:

Code: Select all

...
set the icon of btn x to (the ID of image "whatever.png")
...
8)

jacque
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 5154
Joined: Sat Apr 08, 2006 8:31 pm
Location: Minneapolis MN
Contact:

Re: Counter Intuitive

Post by jacque » Sun Jun 16, 2019 7:43 pm

ID numbers mean that kiddos have to go and look them up .
If you want consistency just use "the ID of img x" everywhere.

The point being that the two are consistent, but one offers an alternative reference.

Edit: I see that speedy Klaus has beat me to it.
Jacqueline Landman Gay | jacque at hyperactivesw dot com
HyperActive Software | http://www.hyperactivesw.com

bogs
Posts: 3995
Joined: Sat Feb 25, 2017 10:45 pm

Re: Counter Intuitive

Post by bogs » Sun Jun 16, 2019 8:04 pm

He is on fire today, as usual.
{Throwing a bucket of water over Klaus} :wink:

JUST KIDDING@
