how to rotate stack 90 degrees

[keram]

Hi,

Is there a way to rotate the stack in IDE by 90 degrees after opening it?
I want to redesign my stack to large tablet dimensions 1600x2560 but have a 13" screen. When using this:
set the scaleFactor of stack "hugeStack" to .25 the squares for resizing the fields etc in edit mode are tiny - it's hard to see them. So I'd like to tilt the stack 90 degrees and skip the scaling.

And, is this a good solution to create a largest possible stack suitable for a large tablet and then use
set the fullscreenmode of me to "exactFit so that the app will fit for smaller devices?

keram

[Klaus]

Hi Keram,

you cannot rotate a stack!
You will need to "fake" this by setting height/width etc...


Best

Klaus

[keram]

Tanks Klaus,

"Faking" will not work because the buttons and fields will stay horizontal while with real rotation they would also rotate into vertical.

[Klaus]

Ah, OK, sorry, then you are out of luck, I'm afraid.

[richmond62]

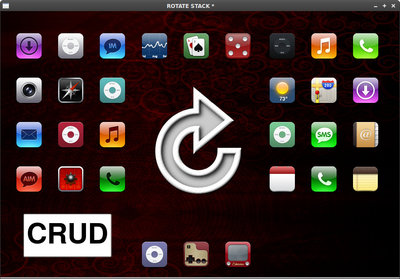

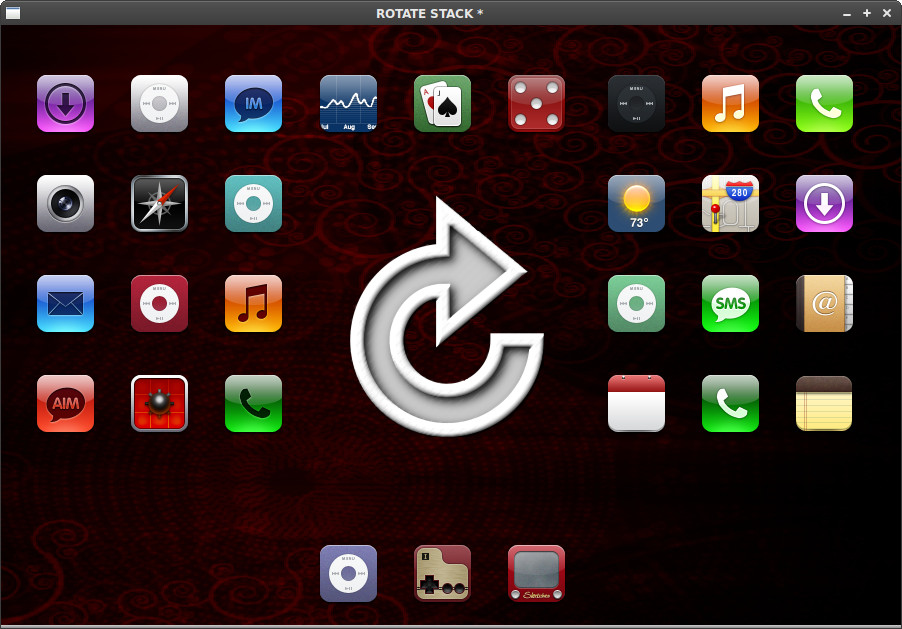

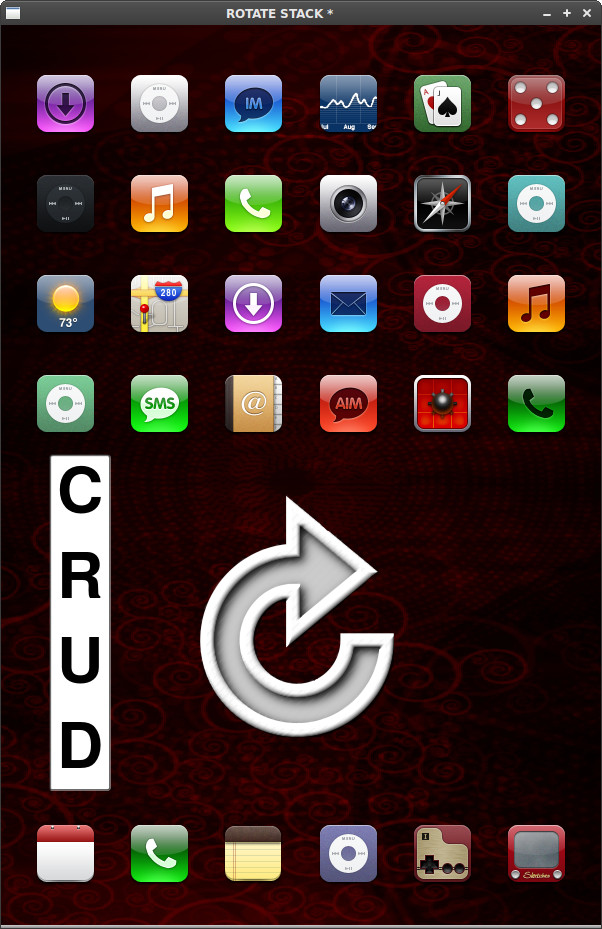

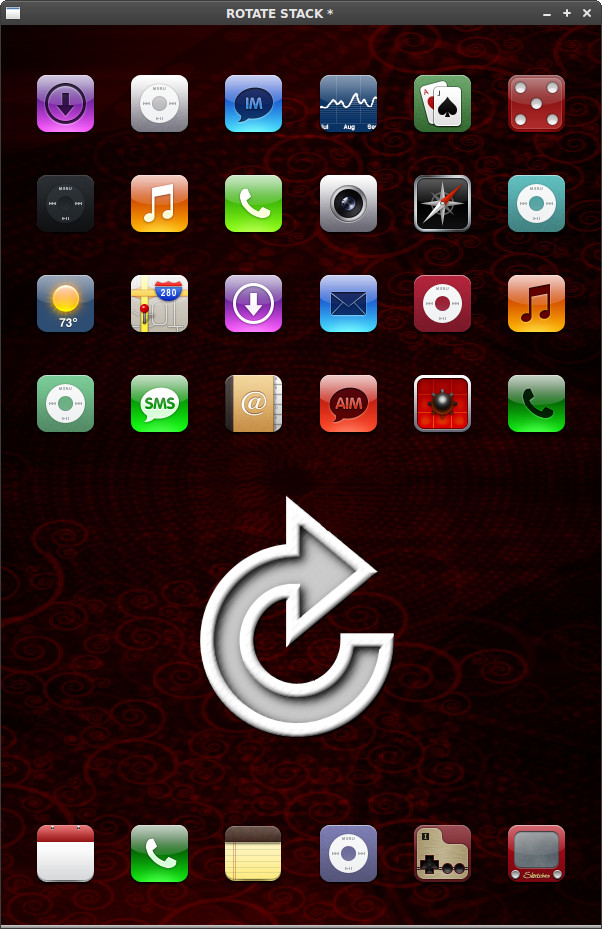

Here's how to fake rotating a stack:

https://www.dropbox.com/sh/ja47l87gg87s ... C5ORa?dl=0 file "rotate stack.livecode.zip"

Hard work!

Click on the silly arrow in the middle!

[Klaus]

Hi Richmond,

nice try, but that's not what keram wanted:

"Faking" will not work because the buttons and fields will stay horizontal while with real rotation they would also rotate into vertical.

Best

Klaus

[richmond62]

Vertical fields . . . LOL

Maybe that should be a feature request.

Wait a minute:

What on earth does rotating the fields into vertical mean?

Keram-ji, would be glad if you could explain a bit more clearly what you want to do

[keram]

Thanks Richmond for another magical stack - all your stacks are magical
But it's not really what I wanted to achieve. It is this kind of gymnastics:

horisontal stack view.png (24.75 KiB) Viewed 9316 times

But that's maybe not possible even with your magic?

keram

[SparkOut]

For the purposes of designing a hi-res layout on a 13" screen, I think you will have to edit the layout with the stack set to the correct dimensions of the target device and judiciously use scrolling, windows zoom settings and message box to "set the topleft of stack "myBigLayout" to 60,60" (and the local, the topright bottomleft, etc) to appropriate values to get the hi-res view into the screen area. I can't conceive a way to get a stack to rotate with the top of all objects still being the "top" but visually at the side.
Can you borrow a larger monitor?

[richmond62]

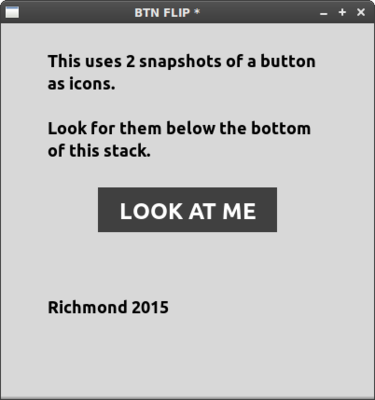

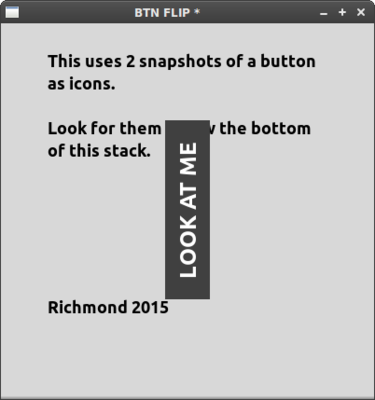

The only way you could rotate buttons with text is rotate "buttons with text":

Set up each button with the text and the colours that you like, then do an IMPORT SNAPSHOT FROM BTN "XYZ" so you have pictorial buttons,
and you can rotate them as much as you like as they are images.

If you need sepearte button icons for buttonUp, buttonDown, armed and so on, you will need an image for each state: these can be rotated and then set
as icons for a standard button.

HOWEVER, field cannot be rotated the way you want them

btn_flip.livecode.zip

(9.41 KiB) Downloaded 232 times

You would also have to fake the bar at the top of the window. Hiding the real one is easy.

[SparkOut]

Nice thoughts, but I understood the OP as wanting to rotate the stack due to trying to design the layout for a high-res tablet on a low-res (13 inch) monitor, so having the larger dimension (monitor width) as the larger dimension (portrait height) of the tablet. Importing snapshots and the ilk aren't any use. He's not trying to fake a landscape layout, he's trying to maximise the view of a hi-res (portrait) layout on a low-res screen while editing the stack. The final app is not going to be a sideways view on the target device.

[FourthWorld]

Given the range of different resolutions across iOS devices, and many times more on Android, I believe that designing for one resolution will ultimately be more trouble than it's worth.

Far better to design with resolution-independence in mind, which will allow development on desktop monitors which frequently have lower res than many mobile devices.

This will mean a bit of extra work up front to make sure the layout scales appropriately, but all of the OS design guidelines reinforce the value of doing so to allow deployment across the range of devices the OS covers.

And with LiveCode's pixelScale, fullscreen, and other language elements supporting resolution independence, it's about as easy as it can get, certainly easier than attempting the same things in Objective-C.

[keram]

Hi everybody,

Thanks for your valuable input.

he's trying to maximise the view of a hi-res (portrait) layout on a low-res screen while editing the stack. The final app is not going to be a sideways view on the target device.

This is an accurate description and I'll try to borrow a larger external monitor to do this work.

And with LiveCode's pixelScale, fullscreen, and other language elements supporting resolution independence

Yes, that's what I was planning to do, to use the set the fullscreenmode of me to "exactFit
Somewhere on the forum I read Jaqueline's advice to create largest possible stack suitable for a large tablet and then use fullscreenmode.

keram

[richmond62]

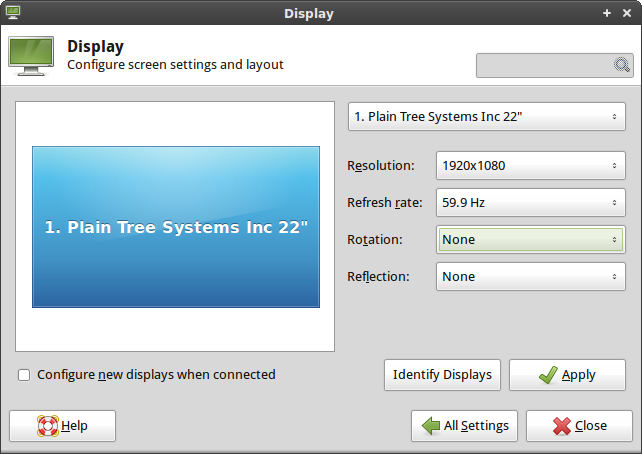

Some flat-screen monitors can do 'everything' for you, keram!

I have a second-hand flat monitor that is 21 inches (found it in a rubbish bin outside a supermarket!!!!!),
and it is attached to my main machine that runs Linux [Ubuntu Studio] which lets me play really silly games
with my monitor . . .

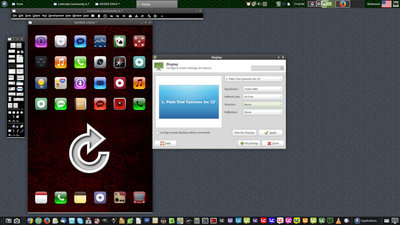

standard:

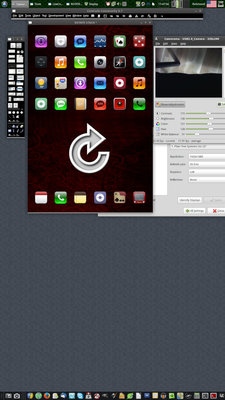

rotated:

I often stand my monitor on its side and have this rotated view as it is very good when working
on translation work.

[keram]

Thanks for a great tip!
