Dialog box selections using keyboard.
Moderators: FourthWorld, heatherlaine, Klaus, kevinmiller
-
- VIP Livecode Opensource Backer
- Posts: 9785
- Joined: Wed May 06, 2009 2:28 pm
- Location: New York, NY
Re: Dialog box selections using keyboard.
Richmond. I did not want to point out your spelling error. Though maybe in the UK that is the way?
Americans are not barbarians, in spite of what the entire rest of the world thinks. In fact, one of my favorite tropes is "Americans are not al all militaristic. They are, however, quite warlike"
Craig
Americans are not barbarians, in spite of what the entire rest of the world thinks. In fact, one of my favorite tropes is "Americans are not al all militaristic. They are, however, quite warlike"
Craig
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
I know Americans are not barbarians.
All I wanted to say was that when I was studying in America, because I had be edicated in Britain I could not write ptoper American English, as when I attempted to I ended up with a mixture of British and Amerivan English which looked ridiculous.
All I wanted to say was that when I was studying in America, because I had be edicated in Britain I could not write ptoper American English, as when I attempted to I ended up with a mixture of British and Amerivan English which looked ridiculous.
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
HOWEVER: muddy boots or not, in an attempt to get vaguely back on topic . . .
. . . Jef Raskin [who knew his stuff] was NOT keen on things like mice and trackpads
https://en.wikipedia.org/wiki/Jef_Raskin
and was designing, before his untimely death, a keyboard-only way of working with a WIMP GUI,
and certainly for people with certain types of physical disabilities this can be advantageous.
So:
- -
a keyboard-driven modal choice thing is NOT as daft as it sounds, and may be put to good use where
an interface is required for people who are disabled:
https://www.possum.co.uk/
- -
It would be relatively easy to set up this sort of thing with icons in LiveCode where selection could be via breath control or lip movement.
- -
I remember working at a Cheshire Home in Brixham, Devon in England (1982) with severely disabled people: and a fantastic chap there,
although flat on his back with the ability to move 3 fingers on one hand had written 3 books on natural history using an early Possum
interface.
. . . Jef Raskin [who knew his stuff] was NOT keen on things like mice and trackpads
https://en.wikipedia.org/wiki/Jef_Raskin
and was designing, before his untimely death, a keyboard-only way of working with a WIMP GUI,
and certainly for people with certain types of physical disabilities this can be advantageous.
So:
- -
a keyboard-driven modal choice thing is NOT as daft as it sounds, and may be put to good use where
an interface is required for people who are disabled:
https://www.possum.co.uk/
- -
It would be relatively easy to set up this sort of thing with icons in LiveCode where selection could be via breath control or lip movement.
- -
I remember working at a Cheshire Home in Brixham, Devon in England (1982) with severely disabled people: and a fantastic chap there,
although flat on his back with the ability to move 3 fingers on one hand had written 3 books on natural history using an early Possum
interface.
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
Or tongue movement:
- -
The 'thing' that always needs to be remembered with these sort of things is that the programmer will have to work
on the basis that the person interacting with their program will have no more than 3 possible actions they can perform:
1. Sideways tongue movement.
2. Teeth clench on tongue.
3. Tongue retraction.
[for the sake of argument: although it would be instructive to have a quadraplegic person
demonstrate what they can do with their tongue].
- -
The 'thing' that always needs to be remembered with these sort of things is that the programmer will have to work
on the basis that the person interacting with their program will have no more than 3 possible actions they can perform:
1. Sideways tongue movement.
2. Teeth clench on tongue.
3. Tongue retraction.
[for the sake of argument: although it would be instructive to have a quadraplegic person
demonstrate what they can do with their tongue].
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
Imagine, also, if you will:
An IDE for LiveCode that could be completely controlled via the arrow keys and the RETURN and/or ENTER key,
so that LiveCode could become the programming environment of choice for teaching disabled people, and
the programming environment of choice for disabled people to develop software . . .
Mind you, I have been throwing ideas like this into the wind for years with nary a peep from top-dead-centre.
-
An IDE for LiveCode that could be completely controlled via the arrow keys and the RETURN and/or ENTER key,
so that LiveCode could become the programming environment of choice for teaching disabled people, and
the programming environment of choice for disabled people to develop software . . .
Mind you, I have been throwing ideas like this into the wind for years with nary a peep from top-dead-centre.
-
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
Wow: look at this bloke: he's obviously got limited motor abilities: BUT, with a joystick,
allowing him at least 4 actions, he can achieve a lot with a computer:
https://lifetec.org.au/dales-story/
- -
A LiveCode IDE controlled by those 4 movements would be "just the ticket" for people with severe physical problems
to get productive in programming terms.
- -
Sheer Joy! Back to the Future.![Cool 8)](./images/smilies/icon_cool.gif)
A joystick with 5 signals sent via USB: UP, DOWN, LEFT, RIGHT and FIRE could be 'tied' very easily to the Arrow keys and the ENTER key
on a standard keyboard.
One of the things that I can see about what this company has to offer is that they do NOT offer disabled people the chance to actually program computers, merely use computers as ways to communictae with other people.
I really wonder of this bloke would not find a suitably modified LC IDE ever so slightly more stimulating than
what he is faced with in this picture:
-
allowing him at least 4 actions, he can achieve a lot with a computer:
https://lifetec.org.au/dales-story/
- -
A LiveCode IDE controlled by those 4 movements would be "just the ticket" for people with severe physical problems
to get productive in programming terms.
- -
Sheer Joy! Back to the Future.
![Cool 8)](./images/smilies/icon_cool.gif)
A joystick with 5 signals sent via USB: UP, DOWN, LEFT, RIGHT and FIRE could be 'tied' very easily to the Arrow keys and the ENTER key
on a standard keyboard.
One of the things that I can see about what this company has to offer is that they do NOT offer disabled people the chance to actually program computers, merely use computers as ways to communictae with other people.
I really wonder of this bloke would not find a suitably modified LC IDE ever so slightly more stimulating than
what he is faced with in this picture:
-
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
I suppose I should invest in one of these:
- -
although I do feel it has far too many fancy buttons for my purposes.
BUT, here in Bulgaria, at least, when one types 'joystick' into a search engine something like 99%
of the results end up like this:
- -
which is NOT really much good.
- -
although I do feel it has far too many fancy buttons for my purposes.
BUT, here in Bulgaria, at least, when one types 'joystick' into a search engine something like 99%
of the results end up like this:
- -
which is NOT really much good.
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
So, we would have to start off with a BIG toolBar stack:
- -
Where objects could be selected via arrow keys [i.e. joystick controls],
and then copied across to a stack with the FIRE [ENTER] button.
The object could then be nudged around the stack using arrow keys again,
and then fixed [locked] with the FIRE button.
Presumably an arrow key + FIRE button combination could be used to open a
preferences palette, panel navigation would be via LEFT and RIGHT arrow keys,
name entry and so on would requitre a pop-up keyboard on-screen using, Yup, you guessed it, arrow keys and the FIRE button.
- -
Where objects could be selected via arrow keys [i.e. joystick controls],
and then copied across to a stack with the FIRE [ENTER] button.
The object could then be nudged around the stack using arrow keys again,
and then fixed [locked] with the FIRE button.
Presumably an arrow key + FIRE button combination could be used to open a
preferences palette, panel navigation would be via LEFT and RIGHT arrow keys,
name entry and so on would requitre a pop-up keyboard on-screen using, Yup, you guessed it, arrow keys and the FIRE button.
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
Corrected stack:
-
-
- Attachments
-
- KB - DIALOGUE.livecode.zip
- Stack.
- (1.4 KiB) Downloaded 51 times
Re: Dialog box selections using keyboard.
Richmond62
I downloaded the revised stack. I can't figure how I could use this - no access to the coding for the selection buttons...
I downloaded the revised stack. I can't figure how I could use this - no access to the coding for the selection buttons...
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.

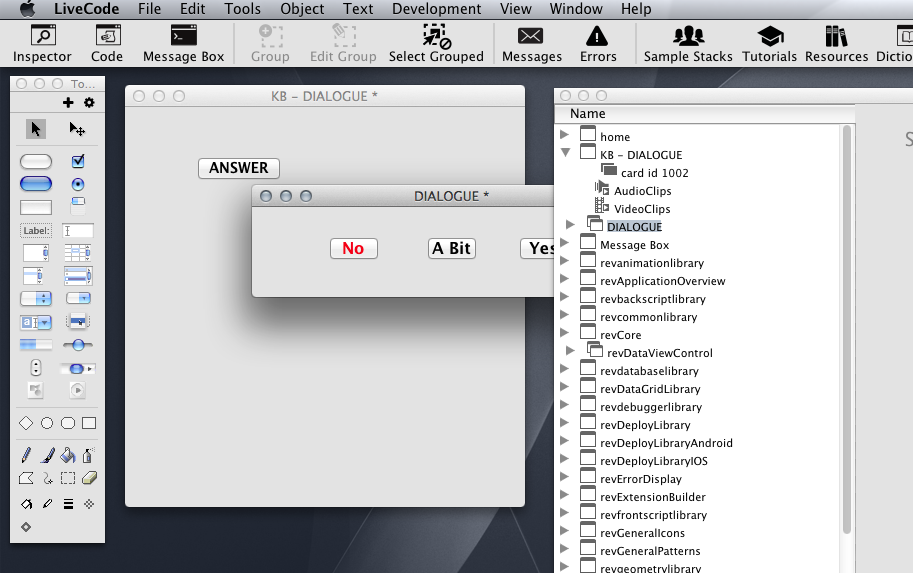

That is because the stack opens as a PALETTE.
To open the palette as an accessible stack you need to do this:
Open the Application Overview thing:
- -
Select the DIALOGUE stack:
- -
Do a Double click and the palette will reopen as a stack:
- -
Then you can open the stack's cardScript.
To open the palette as an accessible stack you need to do this:
Open the Application Overview thing:
- -
Select the DIALOGUE stack:
- -
Do a Double click and the palette will reopen as a stack:
- -
Then you can open the stack's cardScript.
-
- VIP Livecode Opensource Backer
- Posts: 7266
- Joined: Sat Apr 08, 2006 8:31 pm
- Location: Minneapolis MN
- Contact:
Re: Dialog box selections using keyboard.
If you don't want to mess with the overview, another way is to use the contextual menu when the browse tool is active:
Mac: ⌘+shift+control+click
Windows: control+shift+right click
In the menu that appears, choose Stack Mode and select Toplevel. This is especially useful if you've opened a modal dialog and forgot to provide a way to close it.
Mac: ⌘+shift+control+click
Windows: control+shift+right click
In the menu that appears, choose Stack Mode and select Toplevel. This is especially useful if you've opened a modal dialog and forgot to provide a way to close it.
Jacqueline Landman Gay | jacque at hyperactivesw dot com
HyperActive Software | http://www.hyperactivesw.com
HyperActive Software | http://www.hyperactivesw.com
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
This Thrustmaster comes with no Mac driver, but USB Overdrive allowed me to set the joystick to up, down, left, right and RETURN,
which, in turn delivers Unicode chars to LiveCode.
-
- Livecode Opensource Backer
- Posts: 9477
- Joined: Fri Feb 19, 2010 10:17 am
- Location: Bulgaria
Re: Dialog box selections using keyboard.
Code: Select all
on openStack
set the textColor of btn "b1" to blue
put "1" into fld "kee"
focus on btn "b1"
end openStack
on arrowKey AK
if AK = "right" then
put fld "kee" into KEEE
set the textColor of btn ("b" & KEEE) to red
add 1 to KEEE
put KEEE into fld "kee"
if exists(btn ("b" & KEEE)) then
set the textColor of btn ("b" & KEEE) to blue
focus on btn ("b" & KEEE)
end if
end if
end arrowKey
on enterKey
send "mouseUp" to the focusedObject
end enterKey
on closeStack
put 1 into Kred
repeat until Kred > 21
set the textColor of btn ("b" & Kred) to red
add 1 to Kred
end repeat
end closeStack
-
- VIP Livecode Opensource Backer
- Posts: 4036
- Joined: Sun Jan 07, 2007 9:12 pm
- Location: Bochum, Germany
Re: Dialog box selections using keyboard.
Is the "travesalOn" for that button set to true?richmond62 wrote: ↑Sat Mar 11, 2023 8:42 pm´

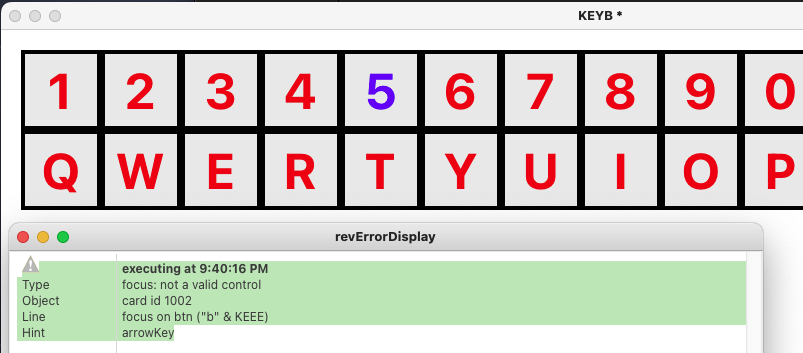

The ERROR dialog that is being thrown up to me makes no obvious sense.Code: Select all
on arrowKey AK if AK = "right" then put fld "kee" into KEEE set the textColor of btn ("b" & KEEE) to red add 1 to KEEE put KEEE into fld "kee" if exists(btn ("b" & KEEE)) then set the textColor of btn ("b" & KEEE) to blue focus on btn ("b" & KEEE) end if end if end arrowKey
The dictionary mentions for "focus"
Kind regardsIf the object's traversalOn property is false, it cannot receive the
focus, and the focus command causes an error.
Bernd
