Well, as not all of us have Adobe Illustrator [ http://lessons.livecode.com/m/33498/l/3 ... -extension ]

I thought I would put together a similar "Show-Me" thing using Inkscape [ https://inkscape.org/en/ ]:

Open or create your shape in Inkscape:
Select ALL the layers:

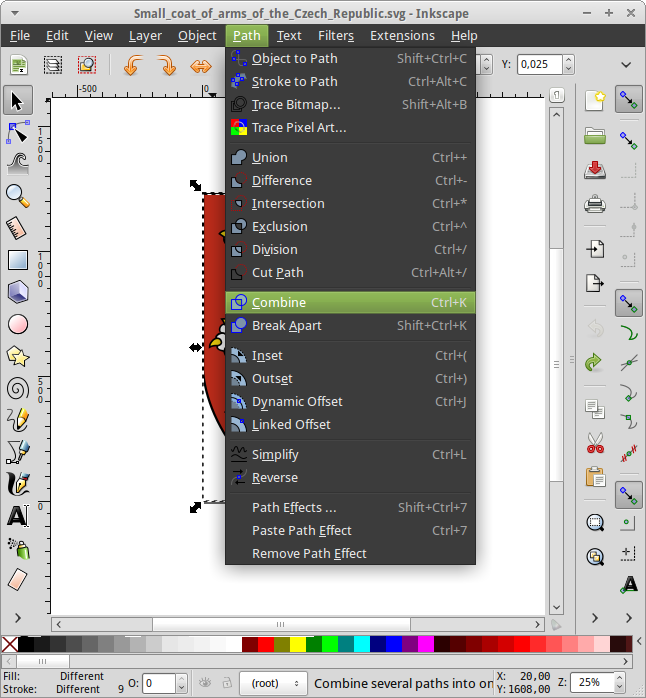

Make sure it is a compound path:

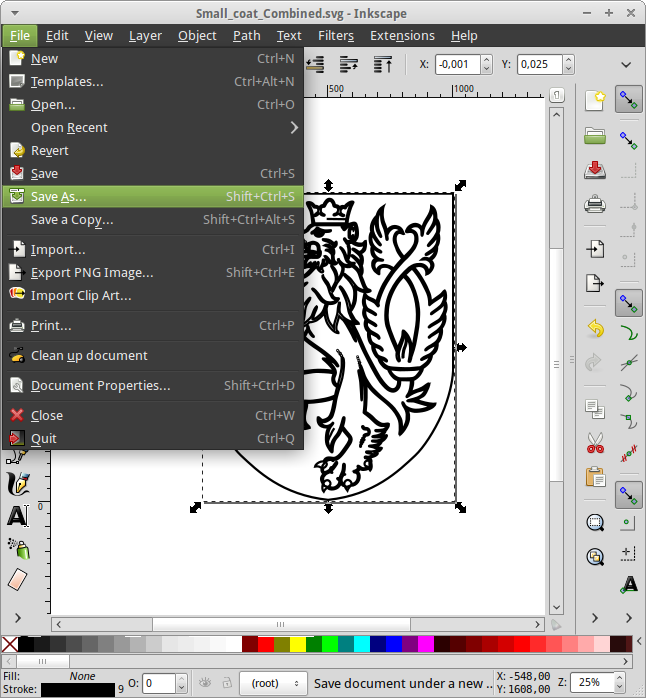

Save under a different name:
Notice how the image has changed.

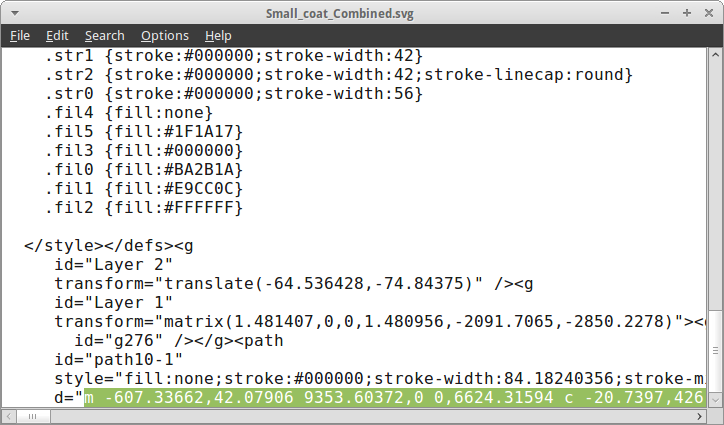

Open the new image in a text editor:
Get the d="..." data

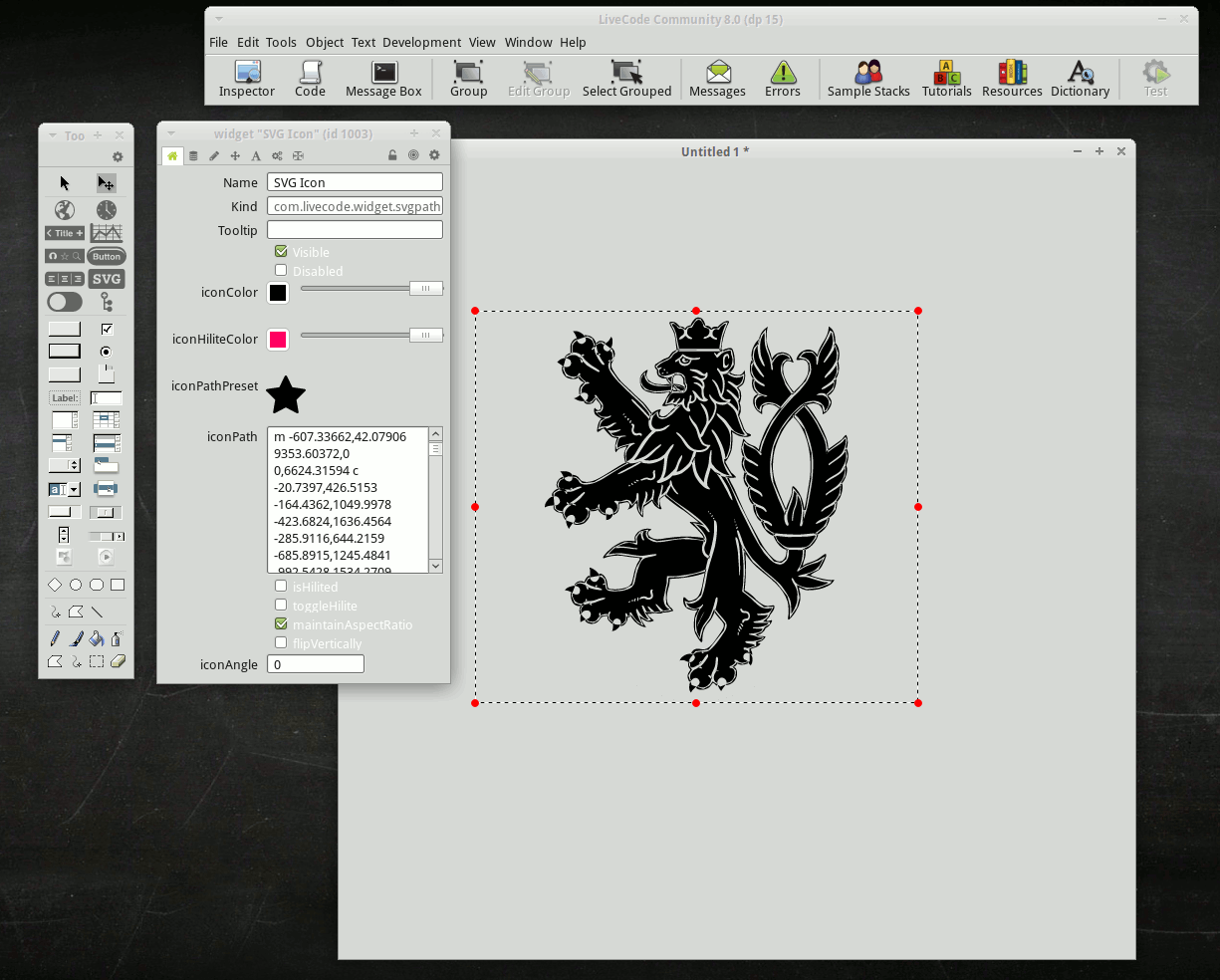

Paste into iconPath field:
Here's a ZIP file with the resultant stack and the original SVG file so you can play around
with this yourself:

Unfortunately the imported image is not exactly the same as the original SVG image,
and until that happens SVG import is a fudge.
