Phantom pathname

Post by dunbarx » Thu Apr 25, 2019 7:17 pm

I use a hardware interface for certain projects. It comes with a framework that allows it to communicate with LC. I can send and receive data from the interface by using commands and functions built into the software. It isn't pertinent, but the interface can read, say, a thermocouple or close an external switch.

When the framework package was originally opened, it parked a bundle in the Applications folder. From there any stack I made could access that bundle, and communicate with the interface. If I wanted to place a copy of that stack onto another machine, I also copied the bundle and placed it in the same folder there. Works fine.

After about four years I suddenly find myself (on the same machine with the old "connectable" stack) unable to make a new stack that can find that bundle. But I can make a copy of my "connectable" stack, clear it completely of all controls and code, and change in any way. It still works fine. So I can make new projects using the old stack as a "template", saved under a new name in a new stack file. I just cannot do so with a new stack.

If I change the name of the folder in which the bundle lives, the "connectable" stack cannot find it any longer. Change the folder name back, and all is well. Therefore the pathname to the bundle must be explicitly stored somewhere in the "connectable" stack.

Where is the "connectable" stack storing the pathname to that bundle? How do it know? I cannot find any reference at all.

Craig

FourthWorld
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 7024
Joined: Sat Apr 08, 2006 7:05 am
Location: Los Angeles
Contact:

Re: Phantom pathname

Post by FourthWorld » Thu Apr 25, 2019 8:20 pm

It may be instructive to dump the stack file into a field and search the field for the bundle name.
Richard Gaskin
Community volunteer LiveCode Community Liaison

LiveCode development, training, and consulting services: Fourth World Systems: http://FourthWorld.com
LiveCode User Group on Facebook : http://FaceBook.com/groups/LiveCodeUsers/

SparkOut
Posts: 2030
Joined: Sun Sep 23, 2007 4:58 pm

Re: Phantom pathname

Post by SparkOut » Thu Apr 25, 2019 8:40 pm

I can give no help here, but I am curious to know what hardware device you are using for this interface.

dunbarx
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 6262
Joined: Wed May 06, 2009 2:28 pm
Location: New York, NY

Re: Phantom pathname

Post by dunbarx » Thu Apr 25, 2019 10:30 pm

@Sparkout.

I have mentioned it in passing several times over many years. It is called "Service USB Plus". Among other items, it is made in Germany by:
https://bkohg.com/interfaces_e.html

It is not cheap. But it has 16 digital I/O ports and two analog, as well as a PWM output. I used four of them in a for-pay project in 2014. It is a general purpose gadget that can read electrical values and output digital data. So currently I am building in-house controllers, reading thermocouple millivolt values, reading the forward voltage of LED's, reading the output of an encoder used as a tachometer and turning on relays.

@ Richard. Will do. Thank you. How does one dump the stack file into a field?

Craig

bogs
Posts: 3997
Joined: Sat Feb 25, 2017 10:45 pm

Re: Phantom pathname

Post by bogs » Thu Apr 25, 2019 10:55 pm

Possibly this is what I was doing when I was figuring out why Mc wouldn't run -

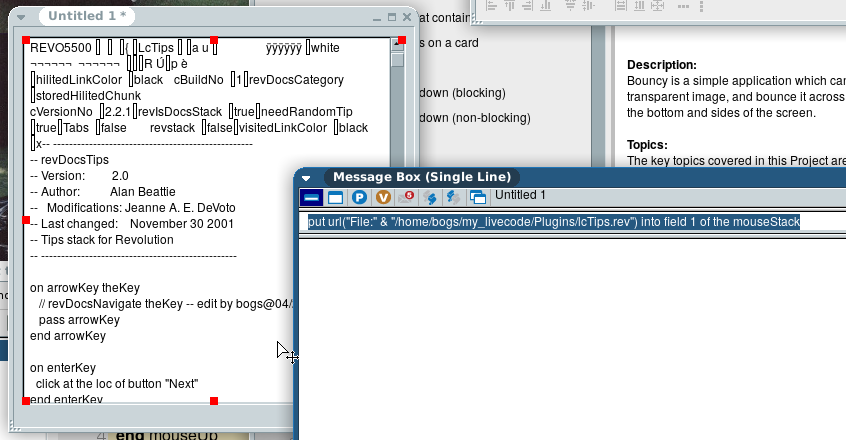

Stack in field...
